WP Webhooks / Examples/ HubSpot × WooCommerce / Line Items

Example · HubSpot × WooCommerce

WooCommerce HubSpot Integration: Sync Order Line Items to Deals

Builds on Parts 1 + 2. When the deal-create webhook returns 201, Webhook Actions's Webhook Chains feature fires one more webhook that POSTs every line item to HubSpot's /line_items/batch/create endpoint — with the deal↔line_item associations attached inline on each input, so the whole graph lands in a single HubSpot call. Each hop is a real webhook with its own log, retry, conditions, and replay — no wp_remote_post hidden inside post-glue.

~14 min read May 15, 2026 Part 3 of 5

Filter OK fswa_webhook_payloadfswa_glue_post_dispatch Pro hubspotwoocommerceline-itemsassociations

TL;DR — What you'll build

Webhook 1 — HS - Create Deal (from Part 1): stays unchanged. On woocommerce_checkout_order_created it POSTs the deal, post-glue persists _hubspot_deal_id.
Webhook 2 — HS - Batch Line Items (NEW, chain target): fires on the deal-create's 2xx response. Pre-glue reshapes args[0] (deal id + WC line_items + product meta) into HubSpot's batch body where each input carries its own associations array pointing at the deal — one POST to /crm/objects/2026-03/line_items/batch/create creates the line items AND wires them to the deal. Post-glue stores the returned line_item IDs in WC order meta.
One chain link, full graph. A 20-item cart is one outbound batch instead of 40 sub-calls. Inline associations on the batch create endpoint removes the need for a separate /v4/associations/.../batch/create hop.
Resolve hs_product_id from WC product meta written by Part 2 inside the batch pre-glue — fall back to free-text line items for products not yet synced.

/ Prerequisites

What You Need Before Starting

⚡

Part 3 is the first example in the series that requires the previous two. The post-glue assumes (a) a HubSpot deal ID has been written by Part 1's create flow and (b) WC products carry _hubspot_product_id from Part 2. Run them in order — or use the Backfill section below to retrofit Part 3 onto existing orders.

Part 1 complete: deal-create webhook + post-glue persisting _hubspot_deal_id
Verify by inspecting a recent test order's post meta — _hubspot_deal_id should hold a HubSpot record ID.
Part 2 complete: product sync + post-glue persisting _hubspot_product_id
Verify by inspecting a recent product's post meta. If you skipped Part 2, line items will still post but without hs_product_id association.
HubSpot scopes added: crm.objects.line_items.write + crm.objects.line_items.read
Edit the same Private App from Parts 1+2. After saving, copy the new token if HubSpot regenerated it.

Shell env from previous parts

Re-export if needed.

re-export if needed

export SITE="https://your-wordpress-site.com"
export TOKEN="fswa_full_..."
export HS_PAT="pat-eu1-xxxxxxxx..."

/ Architecture

One WC Event, One Chain Link

Before Webhook Actions 1.13.0 this article shipped with a post-glue loop that called wp_remote_post N times per order — functional, but every sub-call was invisible to the Webhook Actions log, with no retries, no conditions, no replay button per item. Webhook Chains replace that pattern: a webhook completing successfully (2xx) becomes the trigger for the next webhook in the chain, which receives the upstream response, the payload sent, and the pre-mapping original payload as its starting args[0].

For line items we collapse the loop into a single batch call. HubSpot's /crm/objects/2026-03/line_items/batch/create takes up to 100 inputs per request, and each input can carry an associations array that wires the new line_item to existing records (the deal we just created) at creation time. Two chained webhooks, two log rows, full graph in HubSpot — even a 20-item cart is one outbound deal POST + one outbound line-items batch.

flow diagram

# PART 1 (unchanged): create the deal
WooCommerce order placed
  └── fires woocommerce_checkout_order_created
        └── Webhook #31 POST /crm/objects/2026-03/deals → 201 deal_id=502475571425
              └── post-glue (Part 1): persist _hubspot_deal_id to WC order meta
              └── 2xx → fswa_glue_post_dispatch → ChainDispatcher fires next link

# PART 3 (NEW): one batch webhook, chain-triggered, with inline associations
                    └── Webhook #53 HS - Batch Line Items (chain target, trigger fswa_chain_link:N)
                          └── pre-glue: build {inputs:[{properties, associations:[deal]}, ...]}
                          └── POST /crm/objects/2026-03/line_items/batch/create → 201 results[3 ids, all associated to the deal]
                                └── post-glue: persist _hubspot_line_item_ids to WC order meta
                                └── done. Full graph in HubSpot.

Why this beats the old loop: filter Logs by HS - Order Line Items chain and you see all rows for a single order, in order, with their own retry/replay buttons. If the association batch fails because HubSpot rate-limited mid-burst, you replay one row — not the entire deal-create flow with its double-line-item risk.

/ Step 1 Filter OK fswa_webhook_payloadfswa_glue_post_dispatch Pro

Webhook 2 — HS - Batch Line Items

Create the first chain target: a webhook with no WP-hook triggers, configured for HubSpot's line_items batch endpoint. It will be wired as the chain target of Webhook 31 (HS - Create Deal) from Part 1, so it fires automatically on every deal-create success.

1.1 — Create the webhook via REST

create webhook 53 — no WP triggers (chain-only)

curl -sk -X POST "$SITE/wp-json/fswa/v1/webhooks" \
  -H "X-FSWA-Token: $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "HS - Batch Line Items",
    "endpoint_url": "https://api.hubapi.com/crm/objects/2026-03/line_items/batch/create",
    "http_method": "POST",
    "auth_header": "Bearer '"$HS_PAT"'",
    "is_enabled": true,
    "is_synchronous": false,
    "retry_limit": 2,
    "triggers": []
  }'

response — 200 OK

{
  "id": "53",
  "webhook_uuid": "b41fc8...",
  "name": "HS - Batch Line Items",
  "endpoint_url": "https://api.hubapi.com/crm/objects/2026-03/line_items/batch/create",
  "triggers": []
}

Empty triggers: [] is allowed in v1.13.0+ — the webhook will be triggered exclusively by the chain link we add in step 1.4. Without a chain link this webhook is dormant.

1.2 — Pre-dispatch Code Glue: build the batch inputs

The chain target receives the upstream deal-create response and the original WC payload as args[0]. The pre-glue's job is to reshape that into HubSpot's batch body: { inputs: [{properties: {...}}, ...] }. Payload shaping only — no outbound HTTP, no DB writes here.

snippet code — pre-dispatch glue

// Read chain args. $payload is the chain payload built by ChainDispatcher.
$chain   = $payload["args"][0] ?? [];
$dealId  = (string) ($chain["response"]["body"]["id"] ?? "");

// Recover the WC order id. Resolution order:
//   1) _wc_order_id if Part 1's pre-glue stashed it in the sent payload
//   2) payload.args[0] — woocommerce_checkout_order_created passes the order_id scalar
//   3) original_payload.args[0] — same data, set when mapping is applied
$wcOrderId = (int) (
    $chain["payload"]["_wc_order_id"]
    ?? $chain["payload"]["args"][0]
    ?? $chain["original_payload"]["args"][0]
    ?? 0
);

if (!$dealId || !$wcOrderId) return ["inputs" => []];

$order = wc_get_order($wcOrderId);
if (!$order) return ["inputs" => []];

$inputs    = [];
$wcItemIds = []; // parallel array so post-glue can map result[i] back to a WC order item id

foreach ($order->get_items() as $itemId => $item) {
    $wcProductId = $item->get_variation_id() ?: $item->get_product_id();
    $hsProductId = (string) get_post_meta($wcProductId, "_hubspot_product_id", true);

    $props = [
        "name"     => $item->get_name(),
        "quantity" => (string) $item->get_quantity(),
        "price"    => (string) ($item->get_total() / max(1, $item->get_quantity())),
        "amount"   => (string) $item->get_total(),
    ];
    if ($hsProductId) {
        $props["hs_product_id"] = $hsProductId;
    }

    // Inline association: line_item → deal (HUBSPOT_DEFINED type id 20).
    // HubSpot creates the line item AND wires it to the deal in this same batch call.
    $inputs[] = [
        "properties"   => $props,
        "associations" => [[
            "to"    => ["id" => $dealId],
            "types" => [[
                "associationCategory" => "HUBSPOT_DEFINED",
                "associationTypeId"   => 20,  // line_item_to_deal
            ]],
        ]],
    ];
    $wcItemIds[] = (int) $itemId;
}

// Side-channel: HubSpot ignores unknown top-level fields on this endpoint.
// Post-glue reads these to map result[i].id back to the corresponding WC order item.
return [
    "inputs"       => $inputs,
    "_wc_order_id" => $wcOrderId,
    "_wc_item_ids" => $wcItemIds,
];

HubSpot only reads inputs from the body and ignores extra top-level fields like _wc_order_id / _wc_item_ids. We use those fields as a side-channel for the post-glue — they show up in the Webhook Actions log's sent-payload column but never reach HubSpot's parser. If your downstream API is strict, use Webhook Actions's excluded paths field-mapping option to drop them before send.

1.3 — Post-dispatch Code Glue: persist the line_item ids

snippet code — post-dispatch glue

$body    = json_decode($responseBody, true);
$results = $body["results"] ?? [];

// Side-channel data stashed by pre-glue.
$orderId   = (int) ($payload["_wc_order_id"] ?? 0);
$wcItemIds = (array) ($payload["_wc_item_ids"] ?? []);

if ($responseCode < 200 || $responseCode >= 300 || !$orderId) return;

$order = wc_get_order($orderId);
if (!$order) return;

$liIds = [];

// HubSpot returns results in the same order we sent inputs — we can zip by index.
foreach ($results as $idx => $r) {
    $liId = (string) ($r["id"] ?? "");
    if (!$liId) continue;
    $liIds[] = $liId;

    // Per-WC-order-item meta — survives refunds + per-line edits + downstream sync.
    $wcItemId = (int) ($wcItemIds[$idx] ?? 0);
    if ($wcItemId) {
        wc_update_order_item_meta($wcItemId, "_hubspot_line_item_id", $liId);
    }
}

// Order-level rollup for quick lookups + replay guards.
$order->update_meta_data("_hubspot_line_item_ids", $liIds);
$order->save();

Per-order-item meta vs order meta. Storing the HubSpot id on each WC order item (wc_update_order_item_meta, written to wp_woocommerce_order_itemmeta) makes per-line operations cheap later: refund a single item and sync just that refund to HubSpot; edit a line quantity and PATCH only the matching hs_line_item; report mismatches per row. The order-level _hubspot_line_item_ids array is the fast rollup for "does this order already have line items synced?" replay guards.

1.4 — Attach both snippets, then wire as chain target

Save the two snippets in the Webhook Actions snippet library, attach them to webhook 53 (no trigger needed — chains use the synthetic fswa_chain_link:N trigger which gets bound when you link the webhooks). Then in the admin: edit webhook 53, toggle "Use other Webhooks as triggers", pick the existing chain (or create one named "HS - Order Line Items") and select Webhook 31 (HS - Create Deal) as the source.

Or wire it via REST:

create the chain (if it doesn't exist)

curl -sk -X POST "$SITE/wp-json/fswa/v1/chains" \
  -H "X-FSWA-Token: $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"name": "HS - Order Line Items", "description": "Deal create → batch line items → batch associations"}'
# → {"id":"10","name":"HS - Order Line Items",...}

link webhook 31 → webhook 53

curl -sk -X POST "$SITE/wp-json/fswa/v1/chains/10/links" \
  -H "X-FSWA-Token: $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"source_webhook_id": 31, "target_webhook_id": 53}'

Why is_synchronous: false? The deal-create webhook stays synchronous (Part 1 needs the response inline). Chain targets fire on the queue by default — if HubSpot rate-limits the line_items batch or returns a 5xx, retries happen in the background without blocking the WC checkout response. Customer hits the thank-you page in milliseconds; line items land in HubSpot within seconds.

When to flip to sync. Set is_synchronous: true on this chain target when (a) you have a post-checkout thank-you page that reads HubSpot data directly, (b) an internal CRM-driven email / Slack notification fires next and needs the full graph immediately, or (c) the store is internal / B2B where checkout latency doesn't matter. Cost: ~150–400ms HubSpot round-trip added to the checkout response, plus checkout blocks if HubSpot has an outage. For most public storefronts, async is the safer default.

/ Step 2

End-to-End Test — Three-Line Order

Place a test order with three different products in the cart. The deal-create webhook (Part 1) fires once and returns the deal ID. On its 2xx response the chain dispatcher fires the line-items batch webhook, which POSTs all three line items + their deal associations in a single call.

Open HubSpot → CRM → Deals → (your test deal). Scroll to the Line items section — you should see all three products listed with their names, quantities, and total amounts. Each hs_product_id link should resolve to the matching HubSpot product from Part 2.

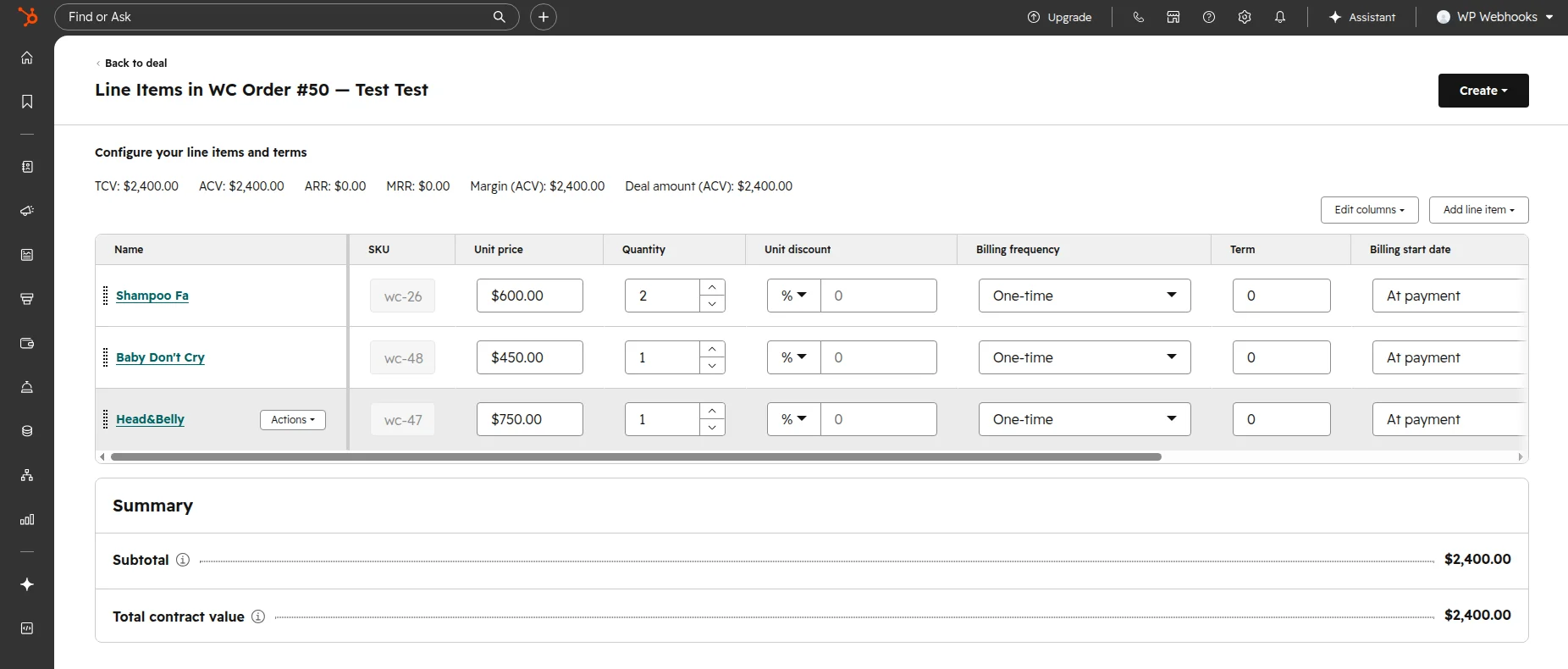

HubSpot Deal detail page with the Line items card open showing three line items from a WooCommerce order, each with name, quantity, and amount — HubSpot → Deal detail → Line items card showing all three products from the WooCommerce order with quantities and amounts, each associated to the deal inline via the batch/create endpoint.

Verify in Webhook Actions. Filter the Logs view by chain HS - Order Line Items: you should see exactly two rows for the test order — one woocommerce_checkout_order_created dispatch (the deal create, status success, 201) and one fswa_chain_link:N dispatch (the line-items batch, status success, 201) sharing the same event UUID.

Verify in WC. Inspect the order's meta — _hubspot_deal_id holds the deal ID, _hubspot_line_item_ids holds the array of HubSpot line_item record IDs. Each WC order item also carries an individual _hubspot_line_item_id in wp_woocommerce_order_itemmeta:

wp-cli inspection

wp wc shell <<'PHP'
$order = wc_get_order($ORDER_ID);
echo "deal_id: " . $order->get_meta("_hubspot_deal_id") . PHP_EOL;
echo "line_item_ids: " . json_encode($order->get_meta("_hubspot_line_item_ids")) . PHP_EOL;
foreach ($order->get_items() as $itemId => $item) {
    echo $itemId . " → " . wc_get_order_item_meta($itemId, "_hubspot_line_item_id") . PHP_EOL;
}
PHP
# deal_id: 502475571425
# line_item_ids: ["18923771401","18923771402","18923771403"]
# 9201 → 18923771401
# 9202 → 18923771402
# 9203 → 18923771403

Webhook Actions admin Logs view filtered by chain HS - Order Line Items showing two rows: deal-create 201 and line-items batch chain-link 201 with the humanized chain pill — Webhook Actions admin → Logs filtered by chain *HS - Order Line Items*. Deal-create row (201) and the line-items batch chain-link row (201) for the same order, with the humanized *Chain HS - Order Line Items ← HS - Create Deal* pill on the chain-link row.

/ Backfill

Retrofit Existing Orders

If you already have orders with HubSpot deals but no line items, run a one-off backfill that calls the same post-glue logic for each existing order:

wp-cli backfill

wp eval '
$orders = wc_get_orders(["limit" => -1, "status" => ["processing","completed"], "return" => "ids"]);
foreach ($orders as $oid) {
    $dealId = get_post_meta($oid, "_hubspot_deal_id", true);
    $existingLi = get_post_meta($oid, "_hubspot_line_item_ids", true);
    if (!$dealId || $existingLi) continue;   // skip orders without deal or already done

    // Simulate the post-glue context: payload, responseCode, responseBody
    do_action("fswa_glue_backfill_line_items", $oid, $dealId);
    echo "backfilled order $oid (deal $dealId)
";
}'

Bind fswa_glue_backfill_line_items in your mu-plugin to the same code as the Part 3 block above (extracted to a function). This keeps the line-item loop testable in isolation and reusable from both the live post-glue and the WP-CLI backfill.

/ Common Pitfalls

Things That Bite

100 inputs per batch limit. HubSpot's /line_items/batch/create accepts up to 100 inputs per request. A single cart over 100 items would need chunking — rare for B2C but possible for B2B order forms. The pre-glue can chunk using array_chunk — but then the batch endpoint only takes one chunk per dispatch, so keep the cart-size assumption documented and add a fallback warning if count($inputs) > 100.

Missing hs_product_id. If a product was created in WC before Part 2 ran, no _hubspot_product_id meta exists. The pre-glue falls back to creating a free-text line item — visible in HubSpot but with no SKU link. Run the Part 2 backfill first to fix it across the catalogue.

Association type id 20 (line_item_to_deal) vs 19 (deal_to_line_item). The direction matters in v4 associations — we create the line_item, so the edge is FROM line_item TO deal, which is HUBSPOT_DEFINED type 20. Reading associations on the deal returns type 19 (the inverse). Mixing them gets you a 400 from HubSpot. Look up the canonical id at /crm/v4/associations/line_items/deals/labels.

Currency precision. Some HubSpot line_item reports round to two decimals while WC stores totals at higher precision. The pre-glue casts to string before sending; HubSpot accepts string numerics for currency properties.

Replay doubles line items. The chain target webhook is not idempotent by default. Replaying the deal-create from the Webhook Actions log re-fires the chain and creates a second set of line items. Two guard strategies: (a) add a condition on the chain link "skip if order already has _hubspot_line_item_ids", or (b) add a check at the top of the pre-glue: if ($order->get_meta("_hubspot_line_item_ids")) return ["inputs" => []]; — an empty inputs array is a no-op POST that HubSpot accepts and the chain still completes cleanly.

/ HubSpot × WooCommerce Series

← Previous Part 2 — Product Sync All 5 parts Series Index Next → Part 4 — Customer → Contact

/Notes

→ HubSpot Line Items — create-line-item (2026-03)

→ HubSpot Line Items — update-line-item (2026-03)

→ HubSpot Line Items — get-line-items (2026-03)

→ HubSpot Associations API

→ All WordPress webhook automation examples

FAQ

Common questions always ask.

Don't see yours? Open an issue on GitHub or check the full reference in the API docs.

Why a chain webhook instead of a post-dispatch loop? +

Before Webhook Actions 1.13.0 this article used a post-glue loop calling wp_remote_post for each line item — functional but every sub-call was invisible to the Webhook Actions log, with no per-item retry or replay. Webhook Chains (v1.13.0+) make each downstream call a real webhook: its own log row, its own retry policy, its own replay button. Filter logs by chain to see all hops for one order side by side.

What if a WC product wasn't synced to HubSpot first (Part 2)? +

The pre-glue checks for _hubspot_product_id; if missing, it falls back to creating a free-text line item with just name + price + quantity (no hs_product_id association). You lose SKU-level reporting but the deal still has line items attached. Run the Part 2 backfill to retrofit.

Does this need Pro? +

Chains themselves are free in Webhook Actions v1.13.0+. Pro makes the pre-glue and post-glue payload shaping easy: snippets live in the admin and attach per webhook+trigger. The free-plugin alternative is to hook fswa_webhook_payload (pre-dispatch shape) and fswa_glue_post_dispatch (post-dispatch persist) in your own mu-plugin — same hooks under the hood.

Why inline associations on batch create instead of a second association webhook? +

HubSpot's /crm/objects/2026-03/line_items/batch/create accepts an associations array per input that wires the new line_item to existing records at creation time. That collapses what used to be two HubSpot round-trips into one. For line_item to deal we use HUBSPOT_DEFINED type id 20 (line_item_to_deal direction).

Will replaying the chain double the line items? +

Yes by default. Guards: (a) attach a per-trigger condition to the synthetic fswa_chain_link:N trigger saying 'skip if order has _hubspot_line_item_ids', or (b) add a pre-glue idempotency check that returns inputs:[] when the order is already synced. An empty-inputs POST is a no-op HubSpot accepts gracefully.
